Function key board

As with the step key and keypad boards, the function key board can take a choice of switches, but the production case only accepts the Multimec tact types:

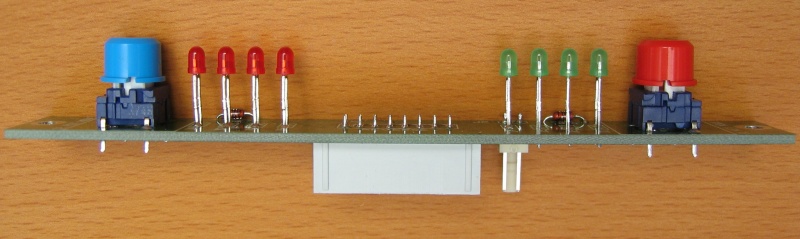

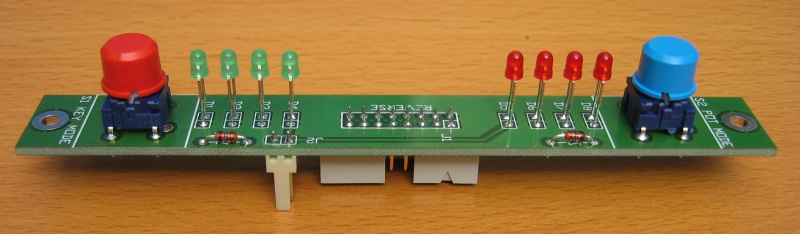

Again, the LEDs should not be soldered in place until you have test fitted the board to the panel and adjusted the LED height as desired. Note the correct fitting orientation of the connectors in the photos above.
