Function key board

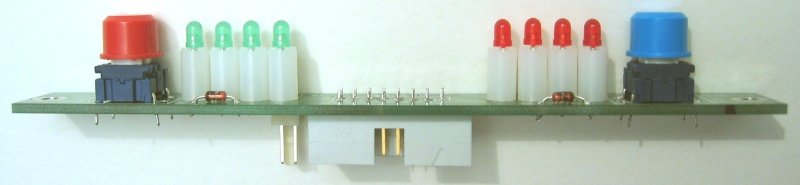

The function key board can take either Multimec 3FTL6 or standard 12mm tact switches, but the production case is designed to accept the Multimec switches and caps:

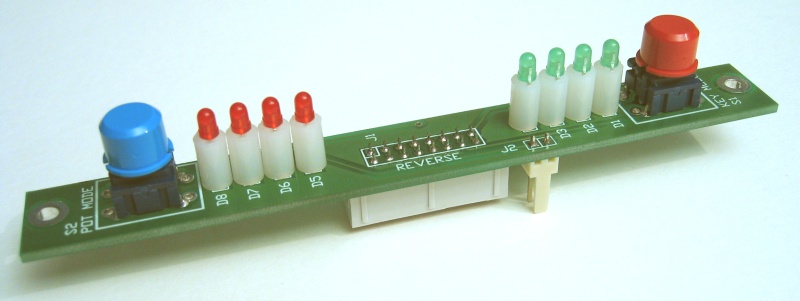

If you don't use LED spacers, the LEDs should not be soldered in place until you have test fitted the board to the panel and adjusted the LED height as desired. Note the correct fitting orientation of the connectors in the photos above.
